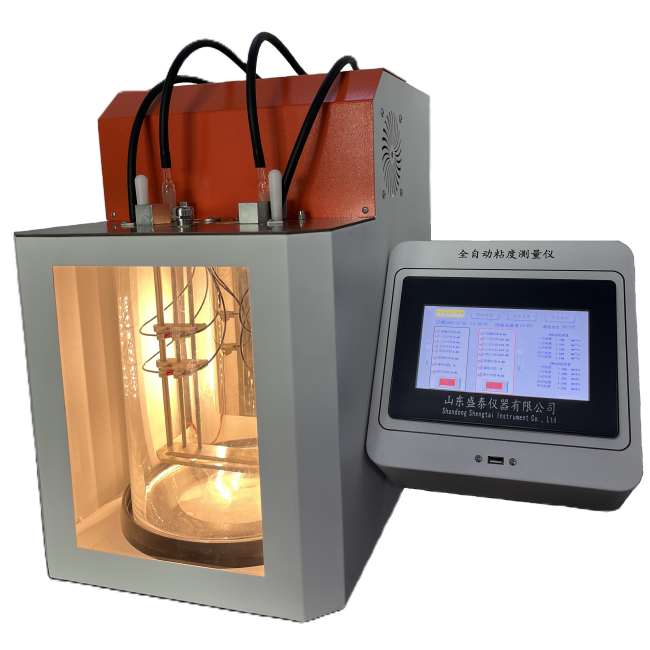

SH112C Full-automatic kinematic viscometer (Pinter's)
SH112C automatic kinematic viscometer is designed and manufactured in strict accordance with GB/T 265 and ASTM D445 standards. It can measure the kinematic viscosity of transparent and opaque liquids to the same accuracy, including crude oil, light fuel oil, lubricating oil, additives and silicone oil. It is also suitable for measuring the kinematic viscosity of samples with high wax content or samples containing insoluble components at room temperature.
Fully automatic sample injection, constant temperature, viscosity test, cleaning and drying viscometer do not need random operation. After setting out, the operator can leave the site, and the instrument can complete all tasks automatically.
The working principle is to put the sample into the selected capillary viscometer, the capillary immersed in a constant temperature bath. The sample is inhaled to the calibration position. When the sample flows to the upper calibration position, the instrument starts to record the time. When the sample flows to the calibration position, the recording time stops. The instrument will automatically calculate the kinematic viscosity of the sample.
| Testing items | Can measure the kinematic viscosity of transparent and opaque liquids to the same accuracy, including crude oil, light and heavy fuel oil, lubricating oil, additives, and silicone oil |
| Standards | GB/T265 ASTMD445 |
| Simple technical features or parameters | Fully automatic sampling, constant temperature, viscosity testing, cleaning, and drying of the viscometer, without the need for personnel to randomly operate. After setting out, the operator can leave the site, and the instrument can automatically complete all tasks. |
Main features
● Large size color touch screen, resolution up to 1024*600.
● Adopt 32-bit microprocessor as the control core, independently developed graphical man-machine interface for operation.
● The main parts and electronic components of the instrument are imported devices with good stability.
● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.
● Double cylinder body, fast and stable temperature control, heating rate >5 ℃ / min.
● Equipped with LED soft light, uniform filling light, easy to observe.
● It has the function of storing viscometer parameters.
● Standard micro printer for automatic measurement and thermal printing
● Storage method: The experimental results can store 199 sets of historical data for easy query
● Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage
● Output Format: The output format of the result USB drive is CSV or Excel
● Viscometer fixture: Made of all 304 stainless steel material and resistant to high and low temperature graphite sliding bearing device
● Data memory: The memory of microcomputer instruments can be expanded to 16GB
● Standard printing: Standard micro printer for automatic measurement and thermal printing
★ 15. Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out in the later stage
★ 16. Data management: can be connected to the LIMS system (optional)
Technical Parameter
| Standard | GB/T265 ASTMD445 |
| Display | Large size color touch screen |
| Heating rate | >5℃/min |
| Temp control range | RT＋5℃ ～ 100.0℃ |
| Temp control accuracy | ±0.1℃ |
| Measure range | 0.4～30000mm²/s |
| Timing range | 0.0s～9999.9s |
| Sample quantity | 2 sets of capillary viscometers (indicate viscosity range when ordering) |
| Temp sensor | PT100 sensor |
| Power sliding wire | 1900W |
| Date storage | 199 sets |
| Size | 450 * 380 * 550mm |
| Weight | 38kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Full-automatic viscosity tester | 1 | Unit | |
| 2 | Special viscosity tube | 4 | Piece | |
| 3 | Sample injector | 1 | Piece | |
| 4 | Printing paper | 2 | Piece | |
| 5 | Electric aspirator | 1 | Set | |
| 6 | Certificate | 1 | Copy | |
| 7 | Instructions | 1 | Copy | |
| 8 | Special tools | 1 | Piece | |
