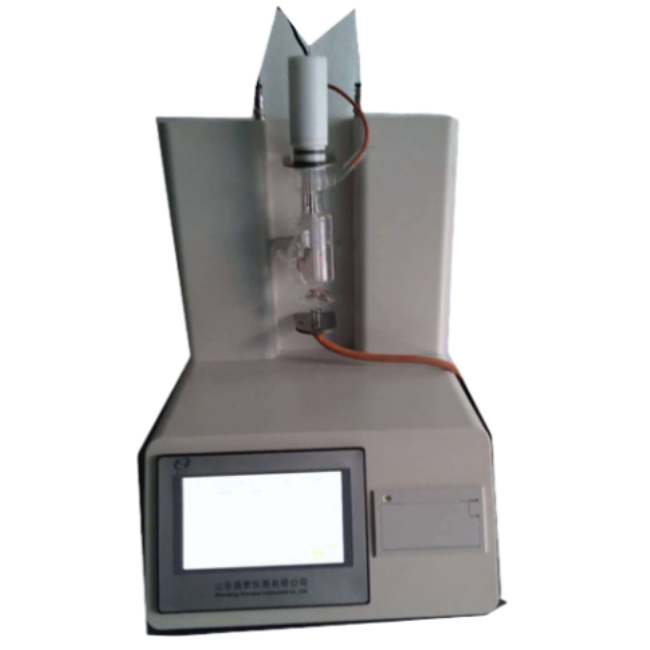

SH412 Automatic surfactant turbidity point tester
SH412 automatic surfactant cloud point tester is according to the national standard GB/T5559-2010 "type epoxy ethane and epoxy ethane a block polymerization of epoxy propane type nonionic surfactant cloud point determination" and ASTM D2024 nonionic surfactant cloud point of the requirements of the standard test method for the design and manufacture of chemical products is suitable for the determination of light color cloud point.
Performance characteristics
● 7-inch color LCD touch screen.
● The photoelectric sensor imported from abroad is adopted, and the test results are accurate and repeatable.
● Simple operation, one key start, the test process will be completed automatically.
● The host adopts microprocessor program control, the test process automatically heating, automatic mixing, automatic cloud point identification, automatic storage.
● Automatic printing, automatic stop after the test.
● The experimental results can be exported through the U disk, stored in the computer can be compared for many times
● With date password setting function.
Technical parameters
● Storage mode: 199 sets of historical data can be stored for easy query;
● Results output: at the same time can be equipped with U disk output function, output to the PC for long-term storage
● Output format: the output format of the result USB flash disk is CSV or EXCEL.
● Standard printing: standard micro printer automatic measurement automatic thermal printing
● Data protection: with date password setting function.
| Standard |
GB/T5559 ASTM D2024 |
| Temp control range |
RT ～ 200℃ |
| Temp control accuracy |
±0.1℃ |
| Heating mode |
electric heating rod |
| Heating power |
60W |
| Stirring mode |
automatic stirring by motor |
| Detection method |
photoelectric sensor |
| Stored records |
200 sets |
| Printing method |
mini printer |
| Working power supply |
AC 220V±10% 50HZ |
| Instrument size |
490*340*470mm |
| Instrument weight |
8.6kg |
| Package size |
560×405×540mm |
| Package weight |
15kg |
Note: The appearance pictures, dimensions, volume and weight are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Sample tube |
1 |
Set |
On the host |
| 3 |
Temperature sensor |
1 |
Piece |
|
| 4 |
Mixing device |
1 |
Set |
On the host |
| 5 |
Power cord |
1 |
Piece |
|
| 6 |
Instruction |
1 |
Copy |
|
| 7 |
Packing list |
1 |
Copy |
|
| 8 |
Certificate warranty card |
1 |
Copy |
|
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
