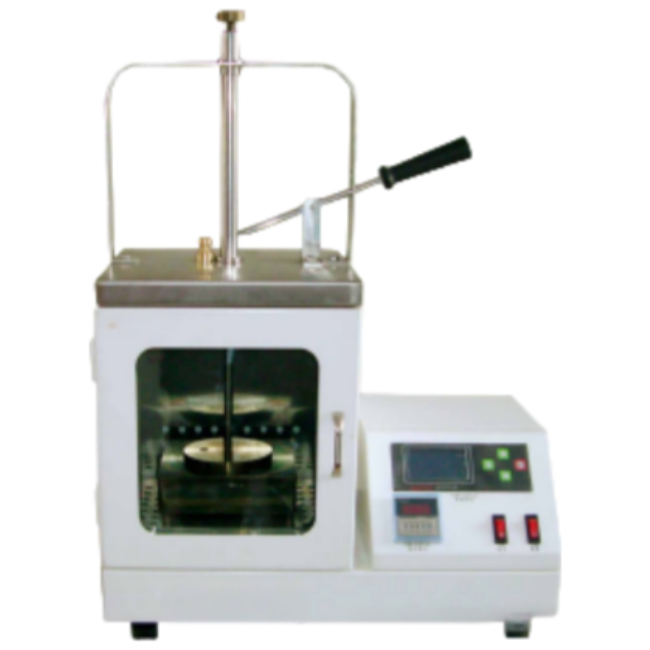

SY0337 Lubricating grease evaporation tester
SY0337 Lubricating grease evaporation tester This instrument is designed and manufactured in accordance with SH/T0337 standard, and is suitable for measuring the evaporation of lubricating grease. Place an evaporating dish filled with 1mm thick lubricating grease in a specialized thermostat and maintain it at the specified temperature for 1 hour (or as specified in the lubricating grease product standard) to measure the mass loss.
The temperature measurement and control of the instrument are both carried out using a digital PID temperature controller, which automatically controls the temperature accurately, with high precision, intuitive digital display, and can be adjusted at any point within the effective range of heating temperature.
Technical Specifications:
| Applicable standard |
SH/T0337 |
| Temp control method |
digital PID temp controller for temp control |
| Working temp |
RT ～ 400 ℃ |
| Temp control accuracy |
± 0.5 ℃ |
| Heating method |
electric heating wire heating |
| Timing method |
digital display timing, set according to the experimental time, and an alarm prompt will be triggered when the set time is reached |
| Working environment |
0 ～ 45 ℃ |
| Working power supply |
220V ± 10% 50Hz |
| Whole machine power |
1kW |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
